x5 IO Expander 1-Wire To I2C
x5 IO Expander 1-Wire To I2C
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability

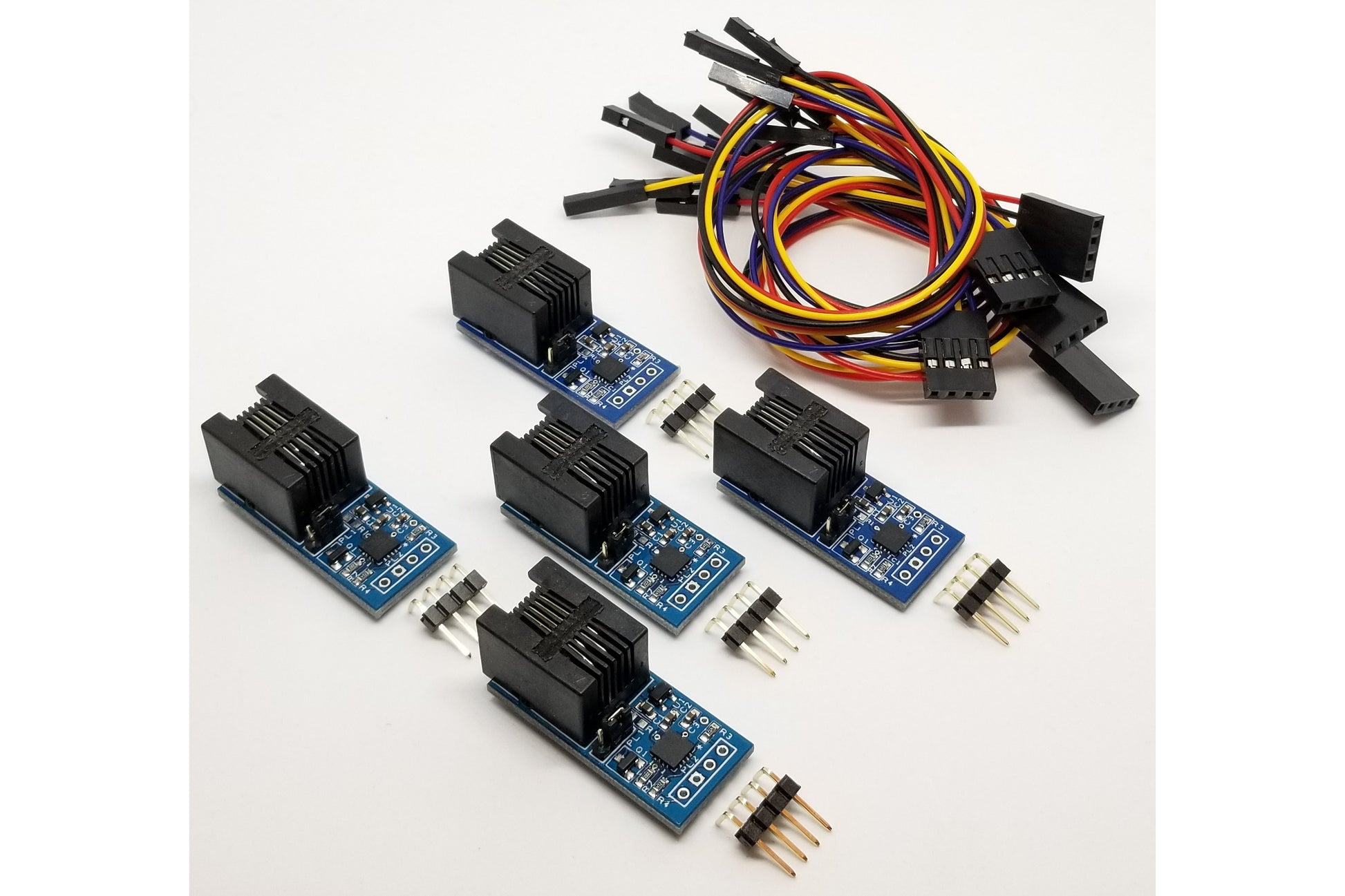

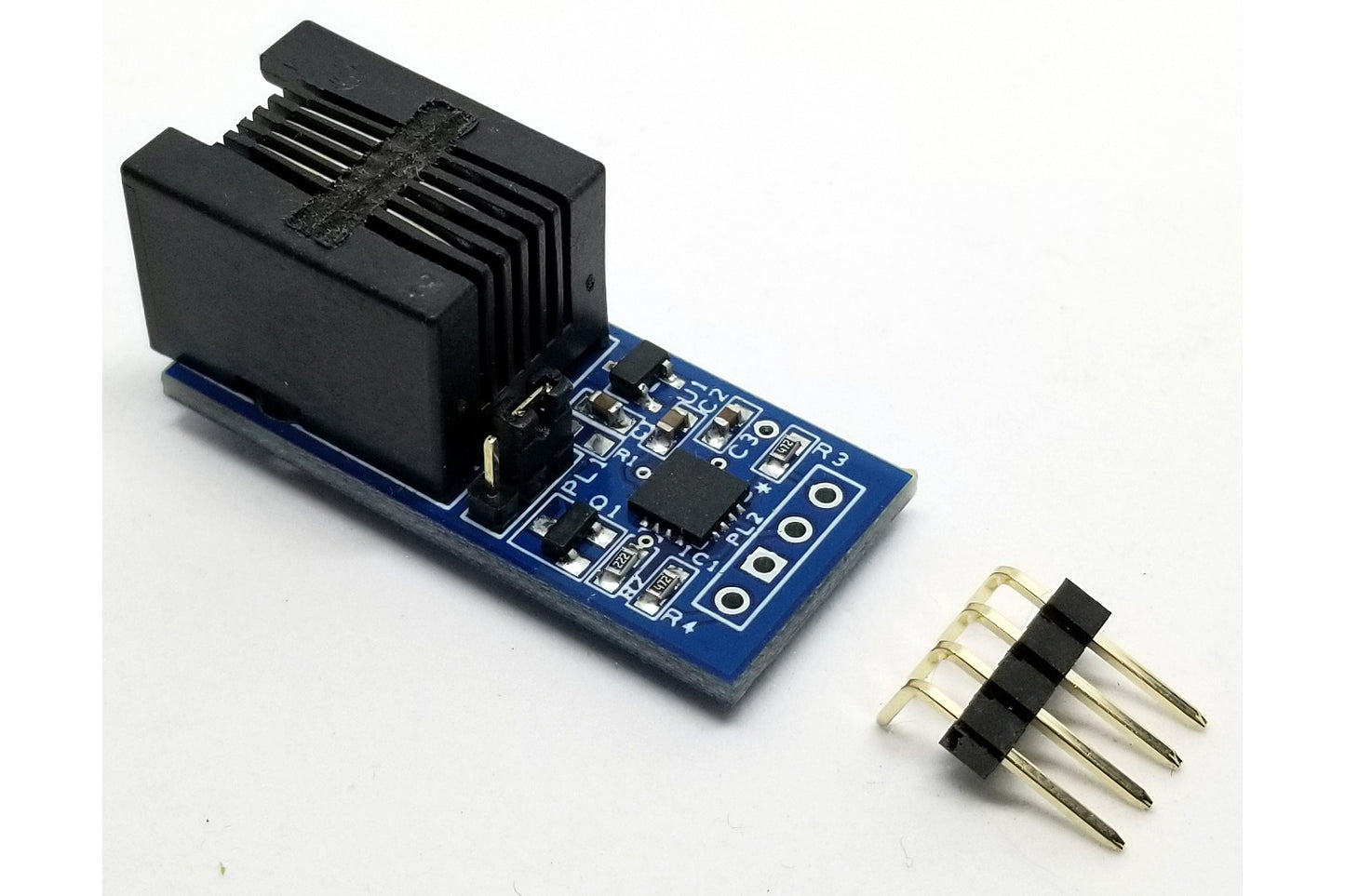

x5 IO Expander 1-Wire To I2C.
x5 Right Angle 2.54mm 4-Pin Male Header.

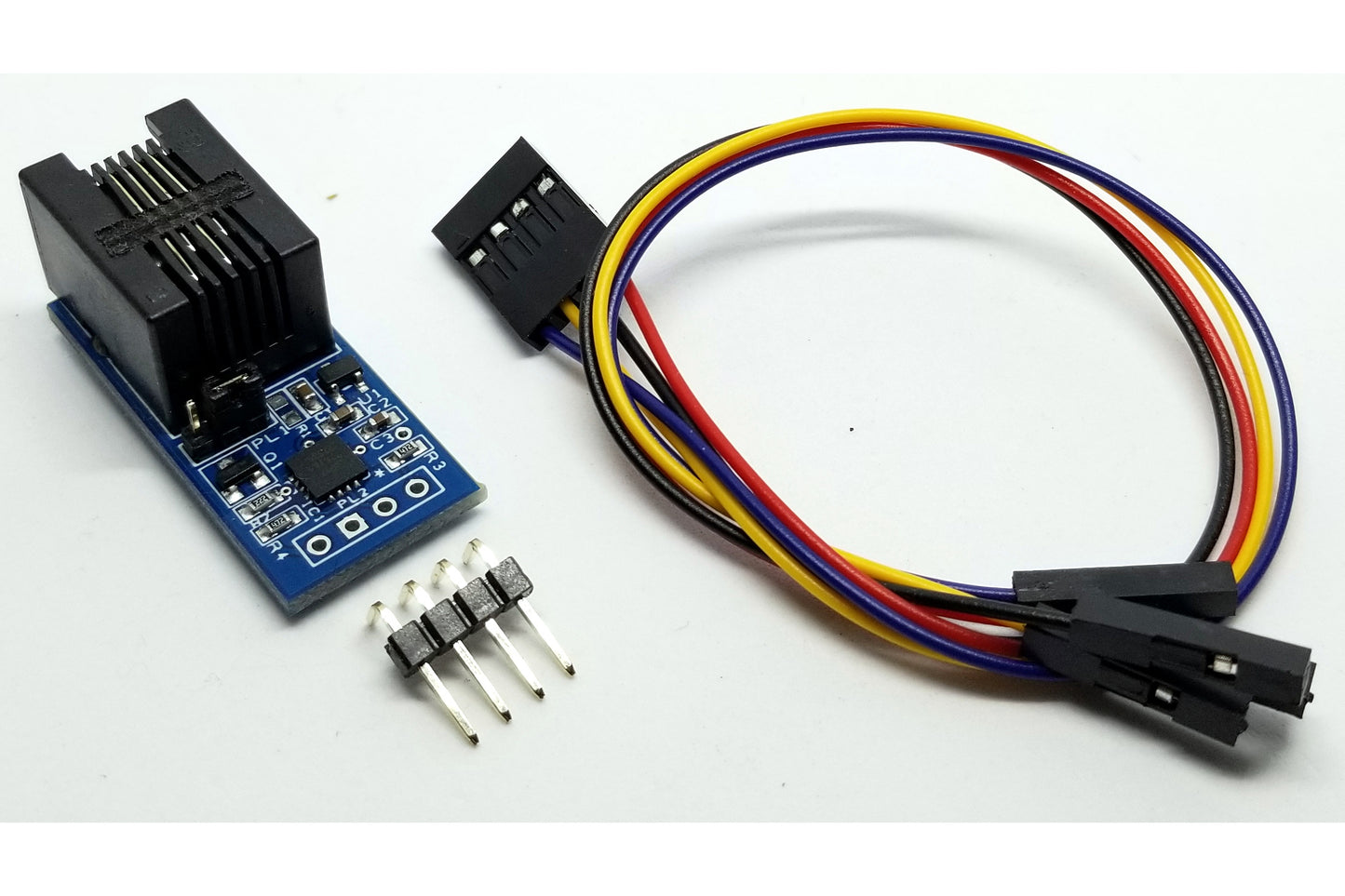

x5 20cm Dupont 2.54mm 4-Pin Female Header to 4x 1-Pin Female Headers.
Feature List
- Connect multiple I2C buses to your 1-Wire® bus on the IO Expander.
- I2C bus only at the end so it solves the limited cable length of I2C.
- Use multiple 1-Wire® to I2C adapters to connect multiple I2C sensors with the same I2C address.
- I2C bus is 3V3 250mA.
- 4.7k ohms I2C bus pull-ups on R3 and R4.
- PL1 jumper to select D1 or D2.
- Software selectable I2C bus speeds of 100kHz or 400kHz.
- 1-Wire® Standard or Overdrive(default) speed.
- Low power 2.6mA typical.
- 34.4mm x 15mm.
This product was designed to be used with the IO Expander.
1-Wire is a registered trademark of Maxim Integrated Products, Inc.
